Inversion Lining

MATERIALS

IPT IS A PROUD DISTRIBUTOR OF

BRAWOLINER® Seamless Textile Liners for the Rehabilitation of Small Diameter Pipes

BRAWO® SYSTEMS offers seamless textile liners for the rehabilitation of small diameter pipes. The BRAWOLINER® are extremely flexible due to their special loop construction.

This makes them the ideal renovation solution for defective pipes with bends of up to 90° and up to two dimensional changes.

BRAWOLINER® have a working life of over 50 years, offering a economic and environmentally-friendly alternative to open construction work!

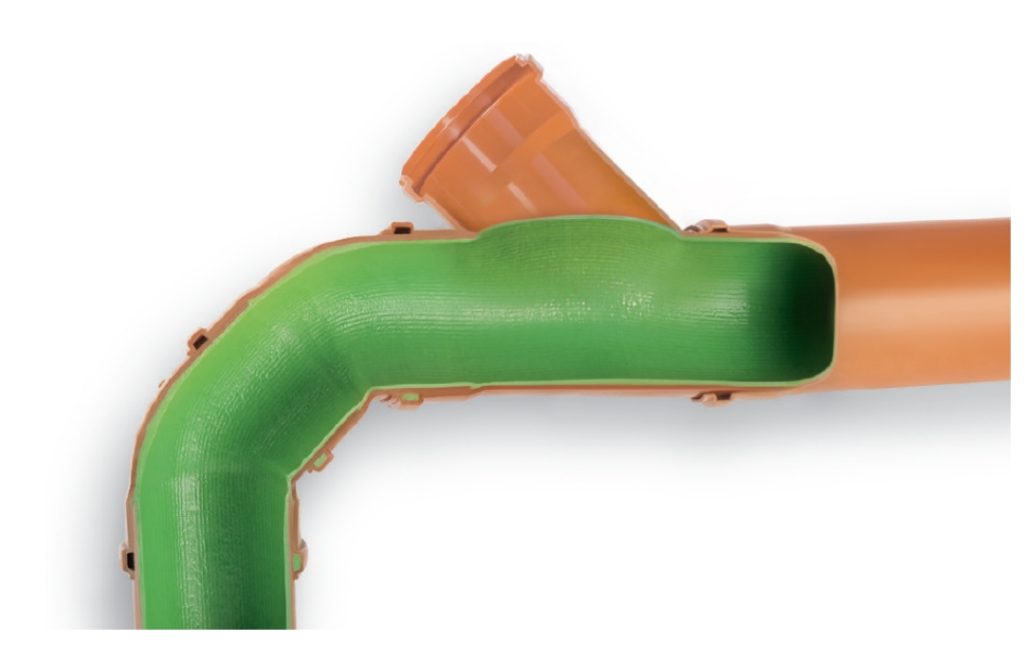

BRAWOLINER 001

BRAWOLINER®

The standard for repairing defective drains

  • From 2“ to 10“ (DN 50 to DN 250)
  • Bends of up to 90°
  • One dimensional change





BRAWOLINER 003

BRAWOLINER® XT

Rehabilitation of structurally impaired pipes

  • From 4“ to 10“ (DN 100 to DN 250)
  • Significantly higher stiffness
  • Bends of up to 90°
  • One dimensional change
BRAWOLINER 002

BRAWOLINER® 3D

Liner for changing diameters

  • From 3“ to 4“ (DN 70 to DN 100)
  • From 4“ to 6“ (DN 100 to DN 150)
  • From 6“ to 8“ (DN 150 to DN 225)
  • From 8“ to 12“ (DN 200 to DN 300)
  • From 12“ to 16“ (DN 300 to DN 400)
  • Bends of up to 90°
BRAWOLINER 004

BRAWOLINER® HT (XT, 3D)

For domestic sewer rehabilitation

  • From 2“ to 10“ (DN 50 to DN 250)
  • Bends of up to 90°
  • Up to two changes in dimension
  • Warm curing possible at higher temperatures with water or steam

BRAWOLINER® Pipe Rehabilitation

Bevor the installation, the flexible BRAWOLINER® will be impregnated with epoxy resin and then inserted in the defective pipe by using air or water pressure. BRAWOLINER® lines the pipe completely and eliminates all existing and potential damages. The result is a completely new and dense tube in the old pipe with significantly better static properties.

Inhouse Rehabilitation

The rehabilitation of wastewater pipes in buildings is subject to special requirements and strict structural rules. The BRAWOLINER® HT rehabilitation system meets all structural requirements and has moreover the exacting DIBt approval for the rehabilitation of drainage systems within buildings.

BRAWOLINER® – Leaking Pipes

The BRAWOLINER® Rehabilitation is the ideal solution for defective drainage systems in private houses and large real estates, industrial plants, hospitals and gas stations. The trenchless rehabilitation allows a quick, cheap and durable rehabilitation of pipes within buildings, buried pipes and pipe connections.

BRAWOLINER®

Download the BRAWOLINER® Flyer below to learn more.

Click Here to View or Download
Brawoliner Flyer Page 1
Brawoliner Flyer Page 2
Brawoliner Flyer Page 3
Brawoliner Flyer Page 4

UV LIGHT CURING

IPT IS A PROUD DISTRIBUTOR OF

BRAWO® Magnavity SX - Light Curing System

Experience fast, reliable and above all smart light curing with BRAWO® Magnavity SX.

The new light curing system consists of an intelligent LED head with 96 high-performance UV LEDs, a 50-metre long combination hose with integrated power and compressed air supply, a retraction unit and a control box.

Download the Magnavity SX UV Light Curing System Flyer below to learn more.

Download Flyer
Rehabilitation with BRAWO® Magnavity SX and end cap

In this video you will see how to prepare an end cap on the liner and rehabilitate using the BRAWO® Magnavity SX.

IPT IS A PROUD DISTRIBUTOR OF

BRAWO® Pico - Light Curing System

BRAWO® Pico SX is the first system specifically designed for use in very small waste water pipes. These are usually found inside buildings (in-house). The innovative light curing for small nominal diameters is unique.

Download the Pico UV Light Curing System Flyer below to learn more.

Download Flyer
Rehabilitation with light – BRAWO® Pico for the in-house sector

In this video you see how to cure a liner with light using the BRAWO® Pico light curing system.
